Small CNC Lathe

Small CNC Lathe

Model No.︰CK140

Brand Name︰YORNEW

Country of Origin︰China

Unit Price︰CNY ¥ 1 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

Product No: CK140

Product Name: Mini CNC Lathe

Features

(1).Automatic 4 positions tool post.
(2).KY 980Tc Turning CNC System
(3). ARM 9 CPU+FPGA,Support B macro function,PLC function,Mutil-language library function.
(4).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(5). The standard spec includes MPG hand wheel.
(6). USB and RS232 port, DNC function of USB.
(7). Control speed of G code.
(8). Selection of high -quality casting materials,more compact.
(9). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(10). 220VAC or 110VAC single-phase AC power supply.
(11). Safety electrical components of high quality.
(12). Auto power off when door open.

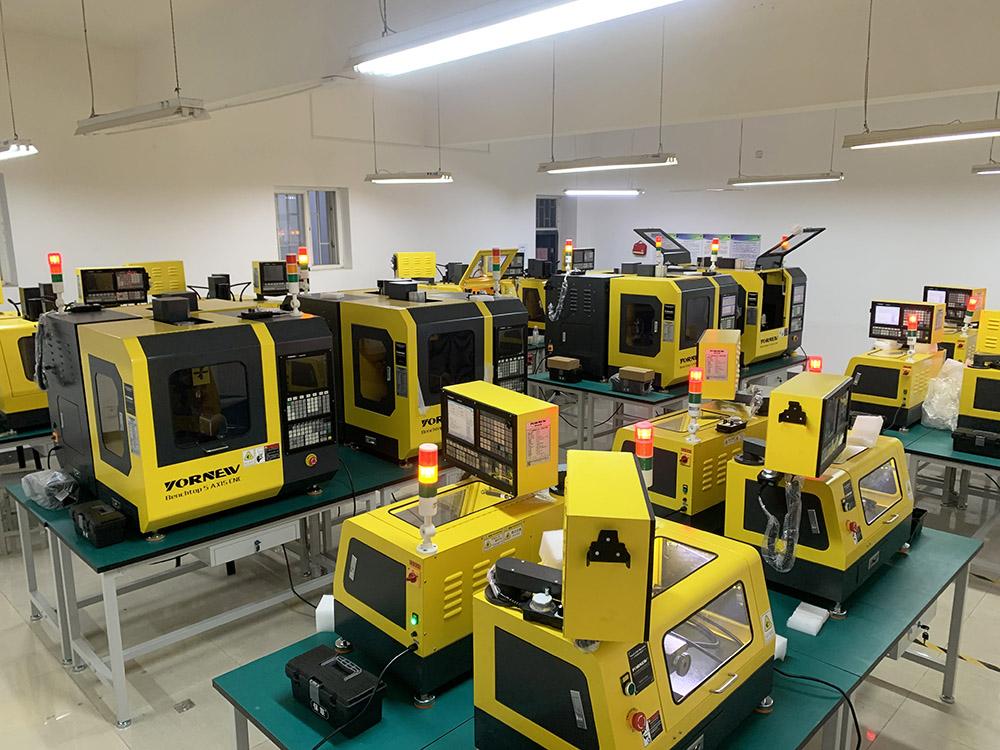

(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.

Technical parameters

Turning diameter over bed(max) 140mm
Travel across slide 75mm
Chuck diameter 80mm
Spindle speed 100-2000r/min(control speed of G code)
Spindle through-hole 11mm
Spindle mount MT2
Spindle motor power 150W
X travel 70mm
Z travel 160mm
The max moving speed 2000mm/min
The max feeding speed 1000mm/min
Control system KY 980Tc Turning CNC System
Tool position 4
Tool dimension 8×8mm
Tailstock taper MT1
Tailstock sleeve diameter 20mm
Travel of tailstock 25mm
Positioning accuracy 0.02mm
Repeatability accuracy 0.02mm
Power 220VAC / 110VAC
Weight(NW/GW) 50/65KG
Overall dimension 750*450*450mm
Packing size 850*470*470mm

Payment Terms︰ TT

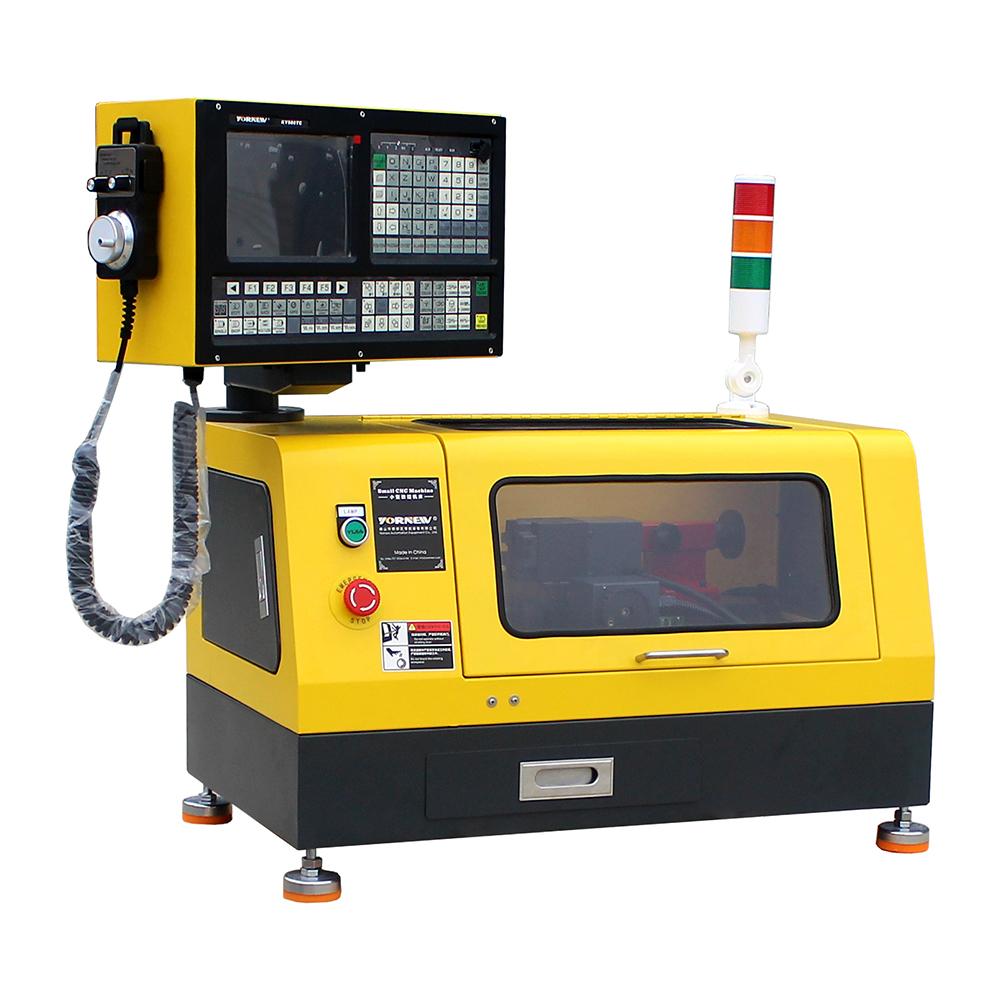

Product Image
