Desktop 5 Axis Mill | Training Mill | Compact 5 Axis CNC
|
|
| Model No.︰ | MX220 |
| Brand Name︰ | YORNEW |
| Country of Origin︰ | China |
| Unit Price︰ | US $ 0.01 / pc |
| Minimum Order︰ | 1 pc |
|
|
|
|
|
|
|
|
Technical parameters
|
|
X axis travel
|
220mm
|
|
Y axis travel
|
120mm
|
|
Z axis travel
|
200mm
|
|
Control system
|
KY 1000MC controller
|
|
Instruction
|
Run ISO G code
|
|
MPG hand wheel
|
5 axis
|
|
Spindle motor
|
2.2kw
|
|
Spindle speed
|
300-24,000r/min
|
|
Collet
|
ER20
|
|
Tool DIA. range
|
4-12mm
|
|
Guide rail
|
3 Axis High-precision linear guide
|
|
The max moving speed
|
2000mm/min
|
|
The max feeding speed
|
1000mm/min
|
|
Positioning accuracy
|
0.02mm
|
|
Repeatability accuracy
|
0.01mm
|
|
Transmission
|
ball screw
|
|
Table size
|
460*130mm
|
|
T slot (amount*width)
|
38*12mm*3
|
|
Max. load
|
30kg
|
|
Table structure
|
Full cast iron
|
|
Power
|
220VAC / 110VAC
|
|
Weight(NW/GW)
|
240/270kg
|
280/330kg
|
|
Overall dimension
|
930*750*1100mm
|
930*750*1700mm with pedestal
|
|
Packing size
|
1050*850*1200mm
|
1050*850*1800mm with pedestal
|
|
4 axis version (optional)
|
|
4th axis travel
|
±360°
|
|
Max Clamping
|
Φ60mm
|
|
5 axis version (optional)
|
|
B axis travel
|
+30°~ -120°
|
|
C axis travel
|
±360°
|
|
Clamping range
|
Φ100*80mm
|
|
|
|
|

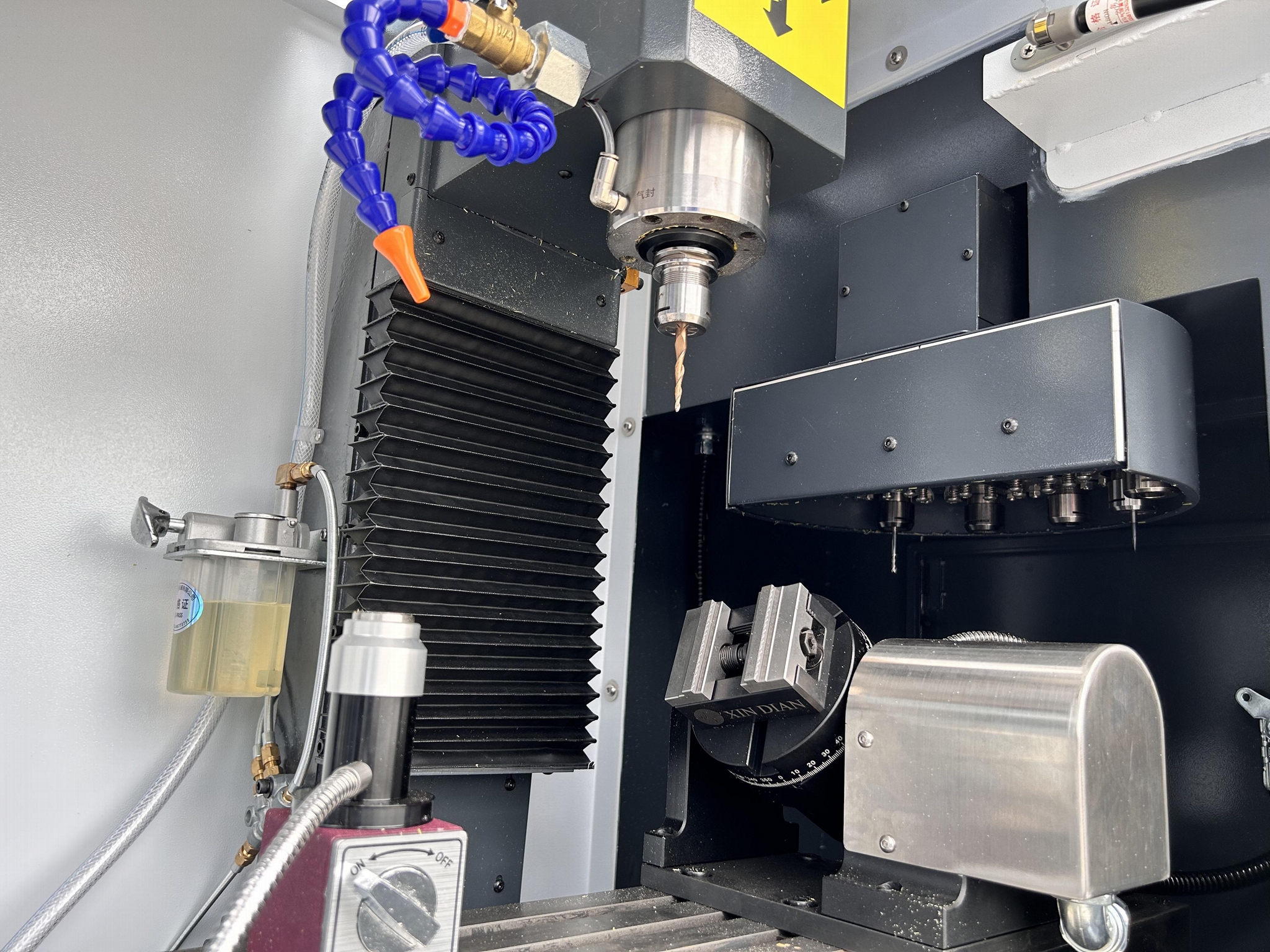

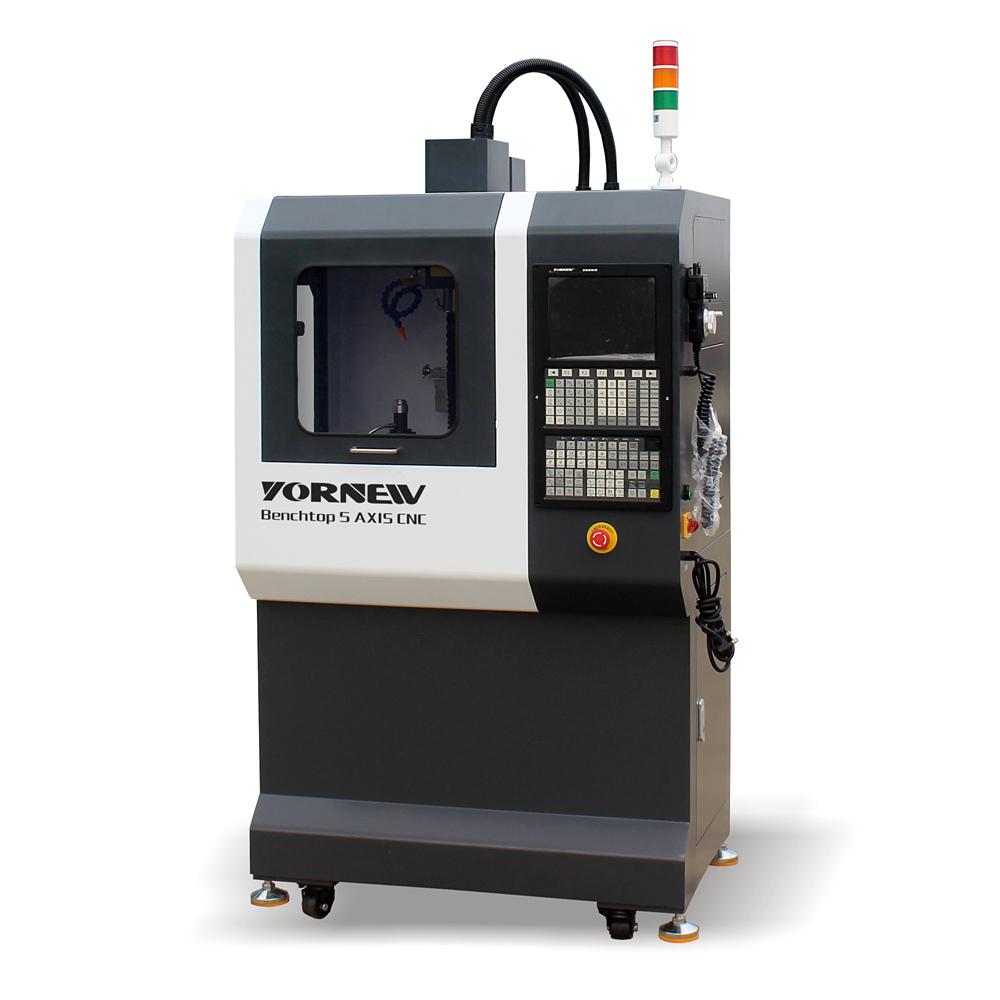

Product Image
|
|
|
